Power without a mains connection – maximum performance for mobile work

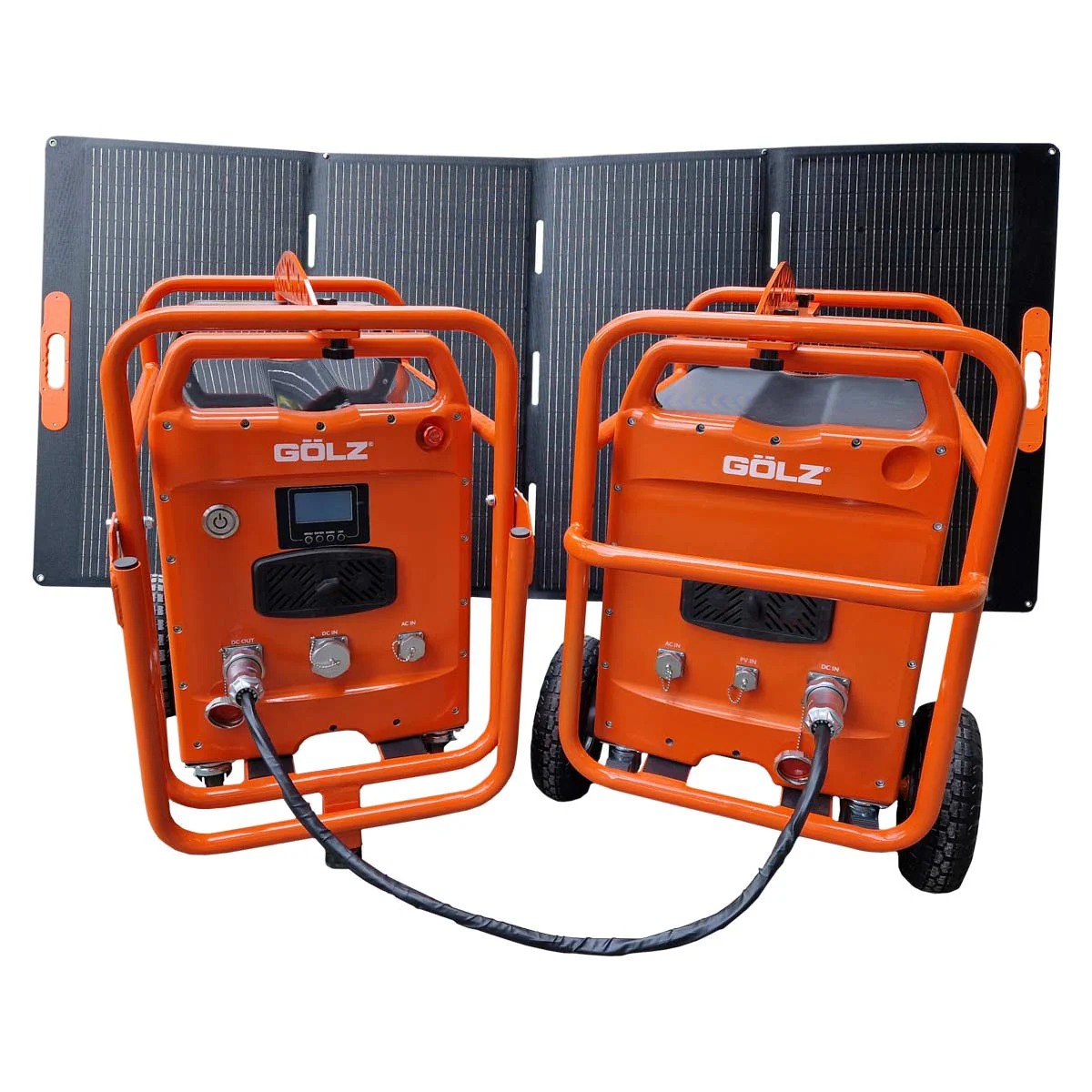

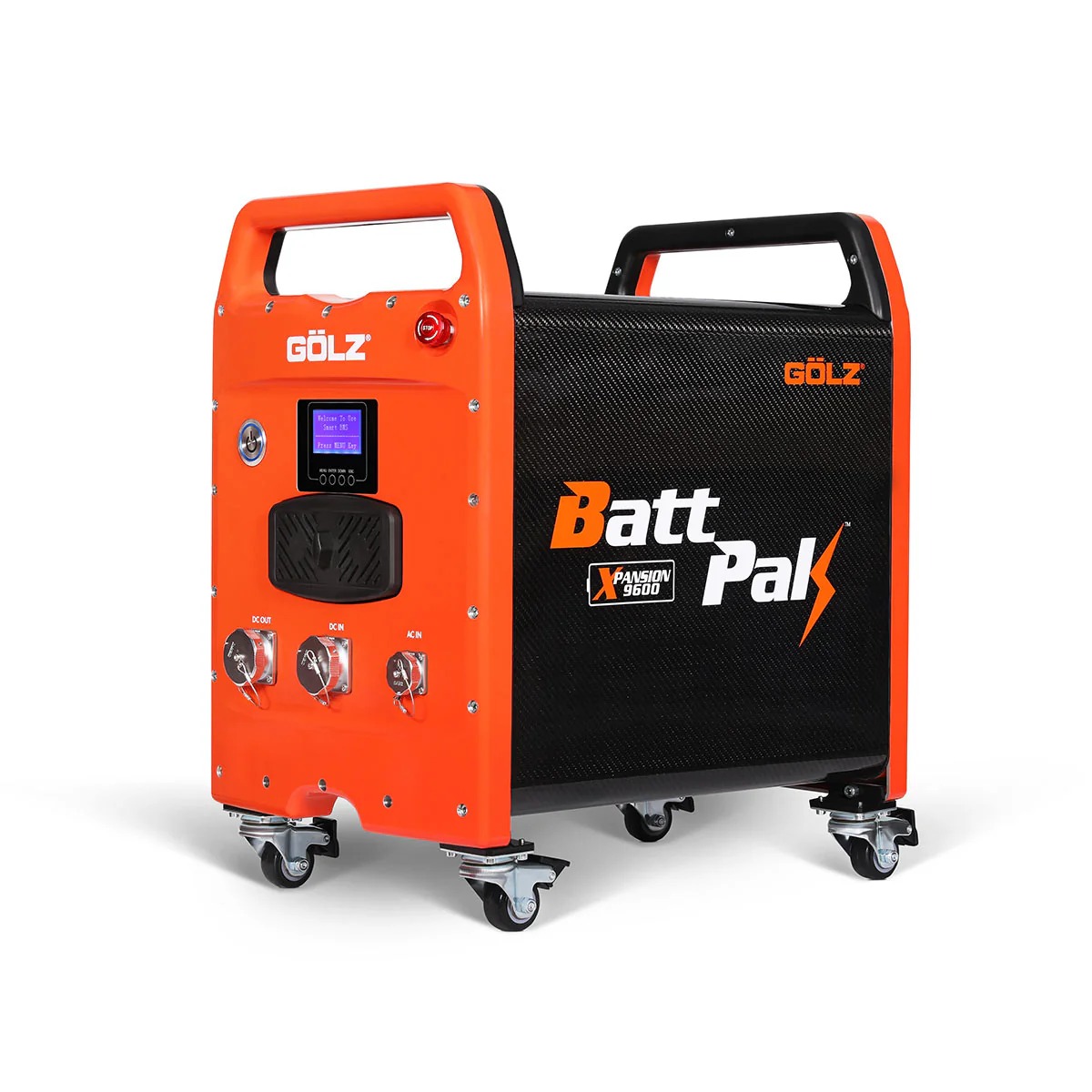

When working on sites or in remote work areas, a reliable power supply is critical. Combined with the BattPak 5048 , the XpansionPak enables the flexible use of power hungry tools and equipment without a fixed power connection . No noisy generators, no dependence on electrical outlets – just pure, portable power.
Features
- Enormous 9.6kWh Battery Capacity: Extend your BattPak runtime with massive energy reserves.
- Expandable to a staggering 134.4kWh: Connect up to 14 expansion packs for scalable, modular power.
- Silent, Emission-free Operation: Perfect for use in noise-sensitive environments.
- Ready for Any Conditions: IP67-rated protection and a durable design for outdoor use.
- Fast Charging Options: Recharge in just 3 hours using an EV station (up to 5kW).
- Dependable LiFePO4 Battery Technology: Safe, long-lasting, and stable with up to 6,000 charge cycles.
Specifications
| Output Power | 5kW |
| Voltage | 230V, 50Hz |
| Peak Power | 7.5 kW (5 sec.) |
| Battery capacity | 9.6kW |
| Battery charging time at 230 V, 16 A | 6 hours |
| PV charging port | 130V – 430V |
| Charging cycles | 6,000 |
| AC output | 2 x 230V, 16 A, 50Hz |
| USB output | 1 x USB-A (5V), 1 x USB-C (12V) |
| Protection class | IP67 |
| Dimensions | 660mm x 410mm x 630mm (LxWxH) |
| Weight | 100kg |
