- One head for crimping, cutting and punching – one tool for all
- Ideal in the assembly field where all common jobs can be carried out using one tool
- All tool data in view thanks to display and i-press® app
- Small and slim, perfect for confined space conditions
Features
- All data can be easily read via Bluetooth
- Universal head flip top style, rotatable
- Simple and safe: one-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: Automatic retraction after operation completed (crimping or cutting)
- Always ready-to-use thanks to battery charge and service display
Specifications
| Crimping force | 60kN |
| Stroke | 42mm |
| Crimping range | 6-300mm² |
| Crimping cycle | 7s to 9s (depending on crimping cross-section) |
| Cutting range | Max 40mm diameter |
| Punching capacity | Up to 64mm diameter round; to 92 x 92mm square |
| Battery voltage | 18V |
| Battery capacity | Makita 1.5Ah, Li-Ion |
| Battery charging time | 15min |
| Ambient temperature | -10°C to +40°C |
| Weight | 3.0kg |

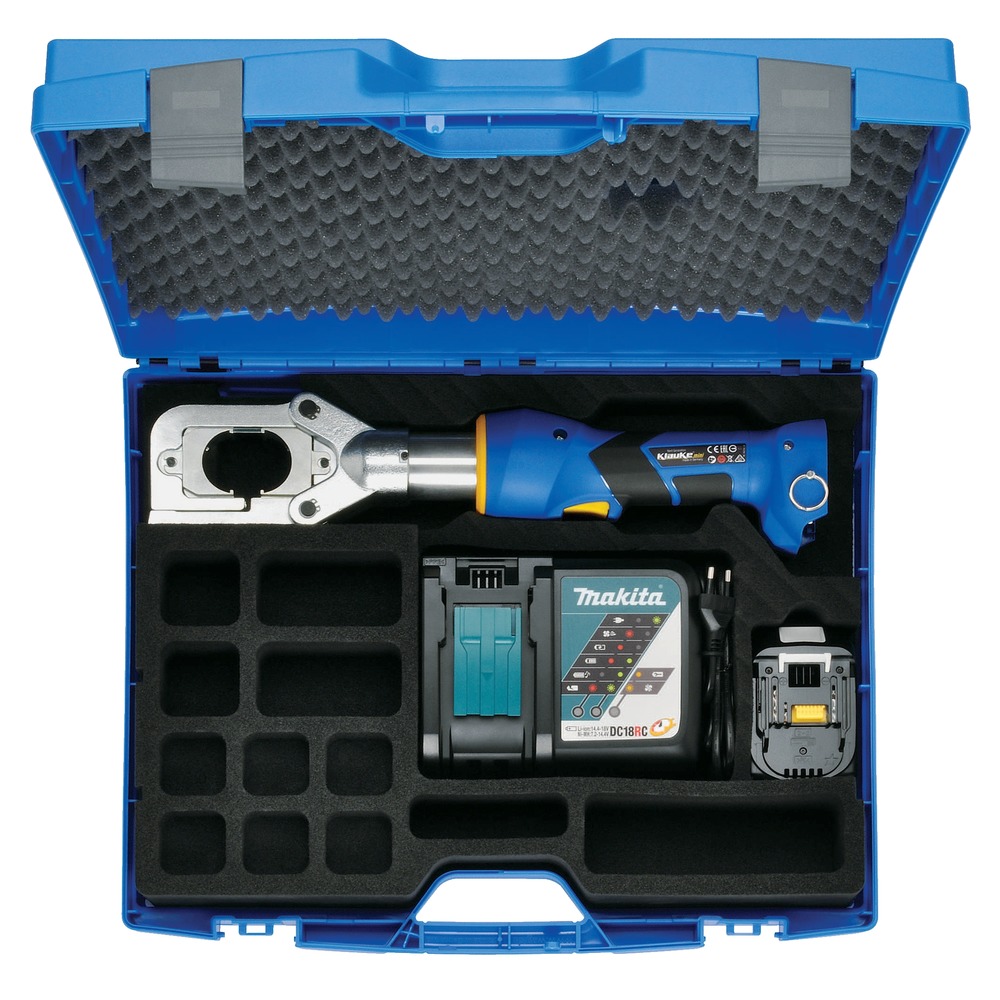

Scope of supply
| EKM60UNVCFM | Klauke EK60UNV Battery Powered Hydraulic Universal Tool 6-300mm² | EKM 60 UNV |
| RAL1 | 18V / 1.5Ah, Li-Ion Makita battery |
| LGL1 | Makita quick-charger for 18 V Li-Ion batteries |
| KKMUNVNG | Hard plastic carrying case |
