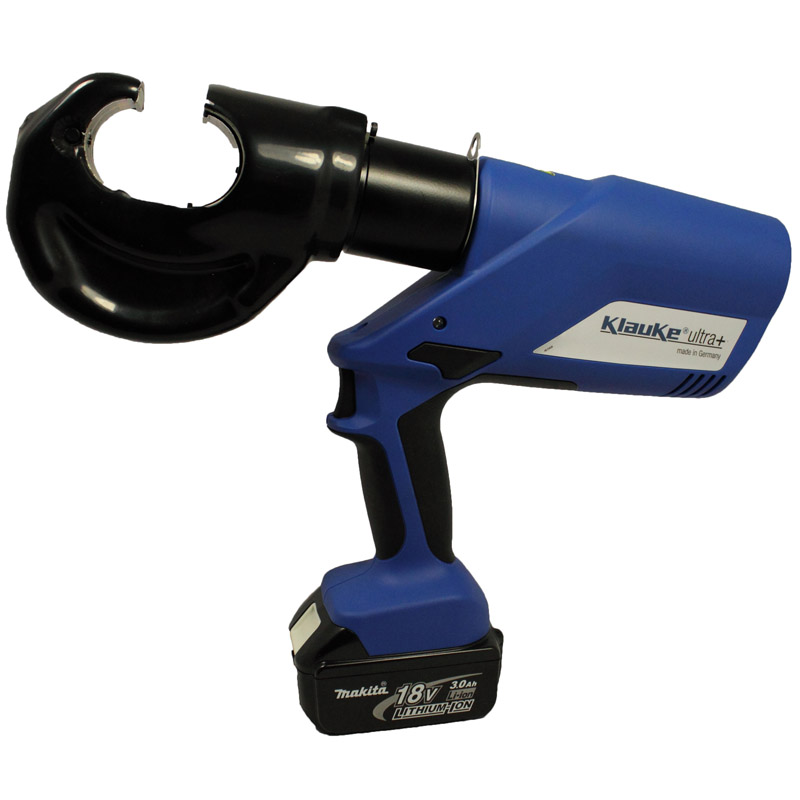

EK 120/32 12 ton crimping tool with insulated head and Makita battery
- Very large crimping range to 400 mm²
- Up to 60 % fewer crimps thanks to wide crimping in comparison to 6 t tools
- All tool data at a glance thanks to display and i-press® app
Characteristics
- All data can be easily read via Bluetooth
- Open head, rotatable
- Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Simple and safe: Automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready-to-use thanks to battery charge and service display
suitable for
- 13-series interchangeable crimping dies, wide crimping
Specifications
| Crimping force | 120kN |
| Stroke/opening width | 32mm |
| Crimping range | 16 – 400mm |
| Crimping cycle | 7s to 8s (depending on crimping cross-section) |
| Battery voltage | 18V |
| Battery capacity | Makita 4.0Ah, Li-Ion |
| Battery charging time | 36min |
| Ambient temperature | -10°C to +40°C |
| Weight | 6.8kg |

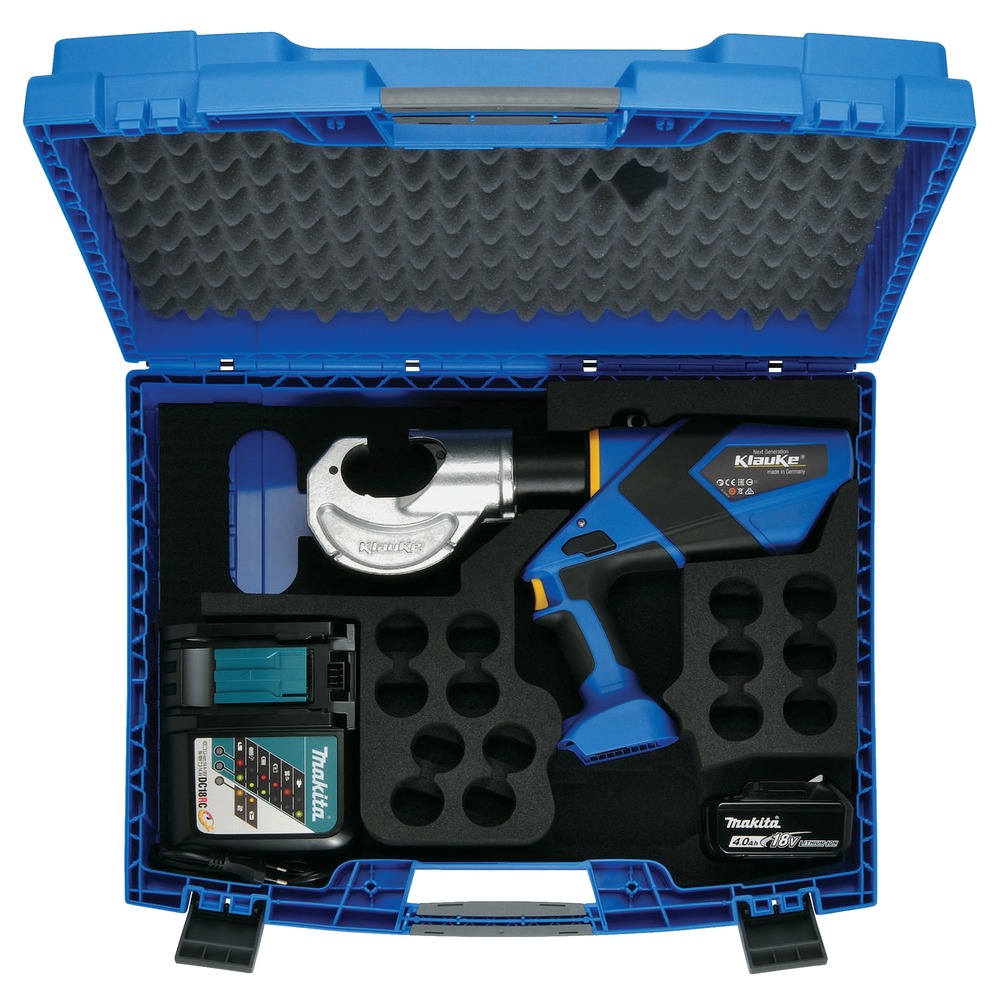

Scope of supply
| EK12032CFM | Battery powered hydraulic crimping tool 16 – 400mm² with insulated head |

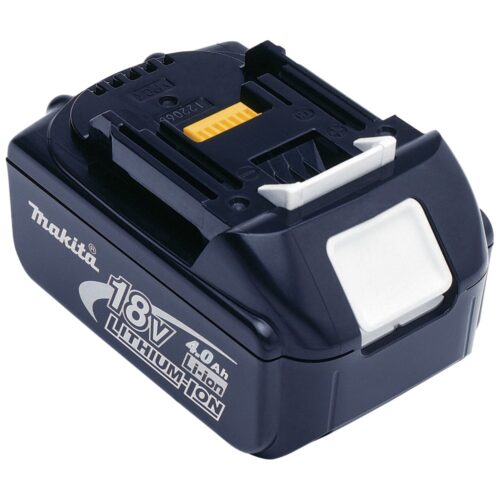

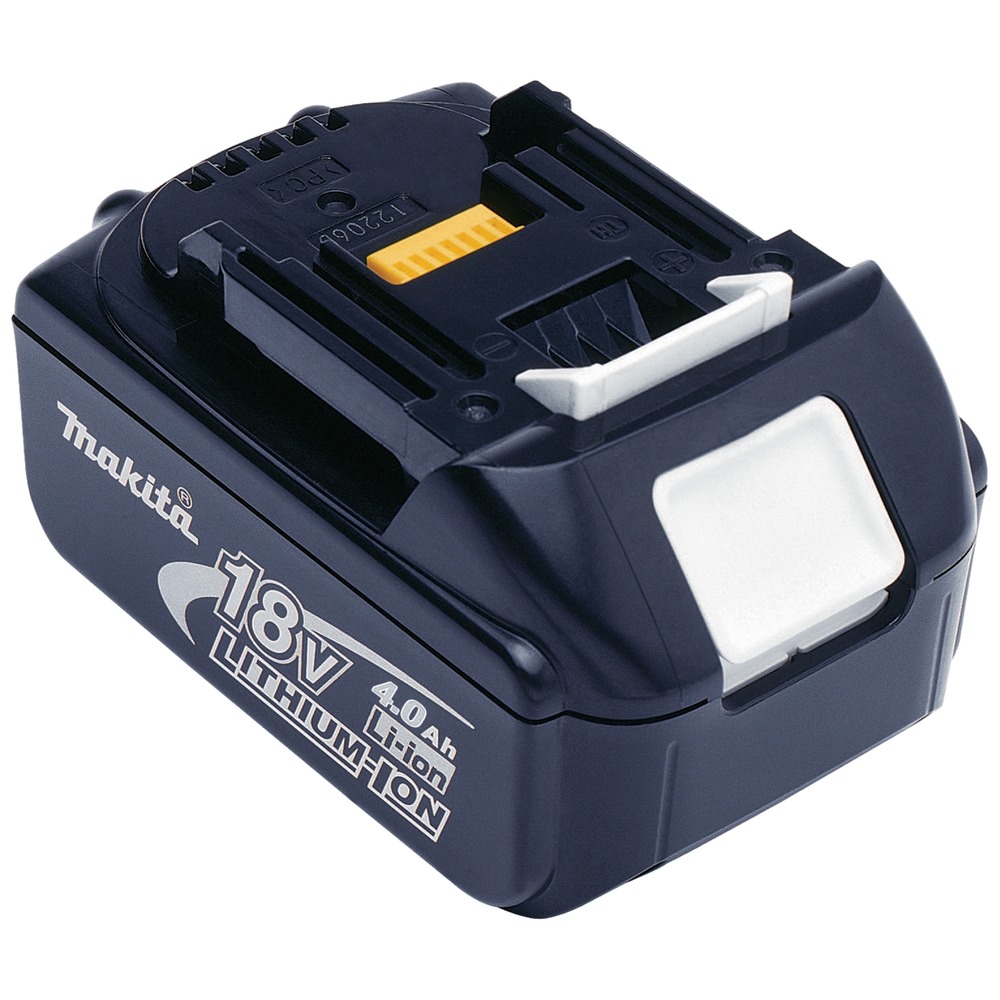

| RAL40 | 18V / 4.0Ah, Li-Ion Makita battery |

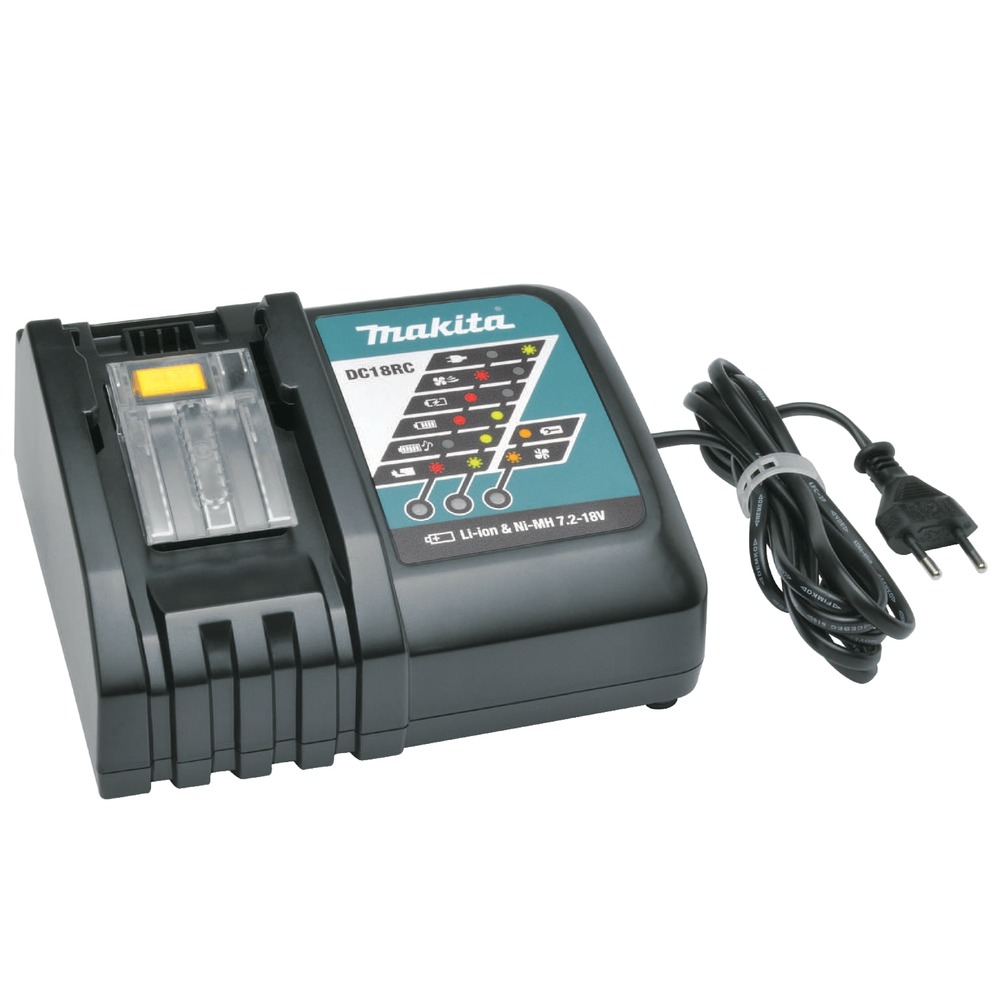

| LGL1 | Makita quick-charger for 18 V Li-Ion batteries |

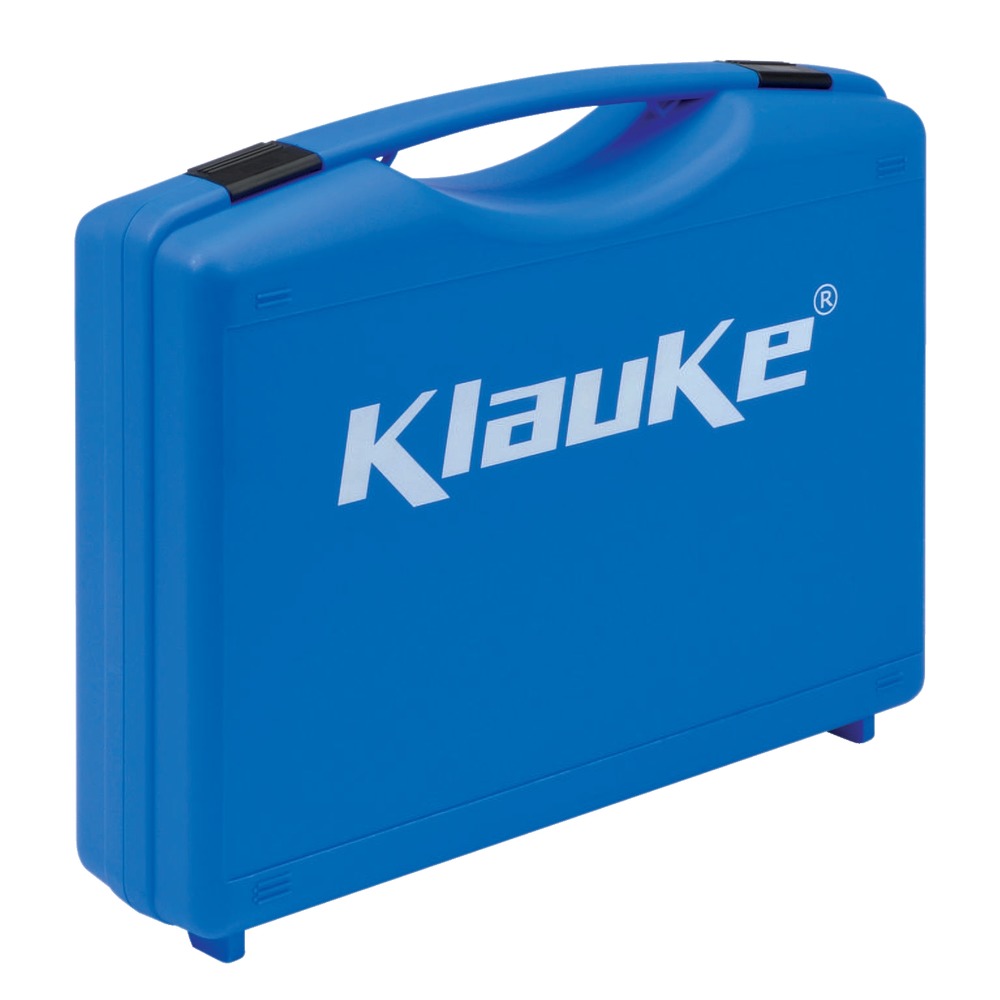

| KK120NG | Hard plastic carrying case |
